Module 2: Advanced Spatial Data Handling and Operations

In Module 1, we learned the essentials: loading, inspecting, and creating basic visualizations of vector and raster data. Now, we move beyond displaying data to truly analyzing it by exploring the relationships between different spatial datasets.

This module covers the core data wrangling operations that are the workhorses of any real-world geospatial analysis.

By the end of this notebook, you will be able to:

Combine vector datasets based on their spatial location using Spatial Joins.
Create areas of interest around features using Buffering.
Perform powerful geometric operations like Intersection and Union.
Handle multi-layered raster data and perform Raster Calculations (Basic Map Algebra).
Link raster and vector data by calculating Zonal Statistics, a cornerstone of environmental epidemiology.
Confidently manage and transform Coordinate Reference Systems (CRS).
Create stunning 2D and 3D visualizations and maps from elevation data using the rayshader package.

2.1 Setup: Loading Packages and Installation

As before, we begin by loading the packages we need. This module introduces rayshader, a powerful package for 3D visualization.

Show/Hide Code

# Run these lines in your R console if you haven't installed rayshader yet
# install.packages("devtools")
devtools::install_github("tylermorganwall/rayshader")

Show/Hide Code

# Core Packages
library(sf)
library(terra)
library(tmap)
library(dplyr)
library(rayshader) # For 3D visualization
library(ggplot2)  # Used by some rayshader examples

# Data Packages
library(spData)
library(maps)
library(spDataLarge)
library(geodata)

2.2 Advanced Vector Data Techniques with `sf`

Spatial Joins

A spatial join is similar to a regular dplyr::left_join(), but instead of joining two tables based on a common ID column, it joins them based on their spatial relationship. This is an incredibly powerful tool for enriching your data.

Worked Example: Assigning Points to Polygons

Imagine we have a dataset of GPS coordinates for several disease outbreak locations, and we want to know which country each outbreak is in.

Show/Hide Code

# First, let's get our polygon layer from the world dataset
data(world) # Make sure world data is loaded
sa_countries <- world %>%
  filter(continent == "South America")

# Next, let's create a dummy sf object of outbreak points.
set.seed(2024) # for reproducibility
outbreak_points <- st_sample(sa_countries, size = 15) %>%
  st_as_sf() %>% # Convert the sfc_POINT object to an sf data frame
  mutate(outbreak_id = 1:15) # Add an ID for each outbreak

# Perform the spatial join
points_with_country_data <- st_join(outbreak_points, sa_countries)

# Let's look at the result
print(points_with_country_data)

Simple feature collection with 15 features and 11 fields
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: -68.42411 ymin: -30.40425 xmax: -39.3102 ymax: 1.299283
Geodetic CRS:  WGS 84
First 10 features:
   outbreak_id iso_a2 name_long     continent region_un     subregion
1            1     BO   Bolivia South America  Americas South America
2            2     BR    Brazil South America  Americas South America
3            3     BR    Brazil South America  Americas South America
4            4     BR    Brazil South America  Americas South America
5            5     BR    Brazil South America  Americas South America
6            6     AR Argentina South America  Americas South America
7            7     BR    Brazil South America  Americas South America
8            8     BR    Brazil South America  Americas South America
9            9     BR    Brazil South America  Americas South America
10          10     BR    Brazil South America  Americas South America
                type area_km2       pop lifeExp gdpPercap
1  Sovereign country  1085270  10562159  68.357  6324.827
2  Sovereign country  8508557 204213133  75.042 15374.262
3  Sovereign country  8508557 204213133  75.042 15374.262
4  Sovereign country  8508557 204213133  75.042 15374.262
5  Sovereign country  8508557 204213133  75.042 15374.262
6  Sovereign country  2784469  42981515  76.252 18797.548
7  Sovereign country  8508557 204213133  75.042 15374.262
8  Sovereign country  8508557 204213133  75.042 15374.262
9  Sovereign country  8508557 204213133  75.042 15374.262
10 Sovereign country  8508557 204213133  75.042 15374.262
                             x
1  POINT (-66.43254 -21.48096)
2  POINT (-48.66798 -7.045351)
3   POINT (-62.00516 -6.69752)
4   POINT (-39.3102 -8.718425)
5  POINT (-57.33359 -10.13765)
6  POINT (-60.42989 -24.66893)
7  POINT (-67.62014 -8.297282)
8  POINT (-49.64755 -3.098395)
9  POINT (-41.73221 -20.72512)
10  POINT (-44.18993 -18.4131)

Show/Hide Code

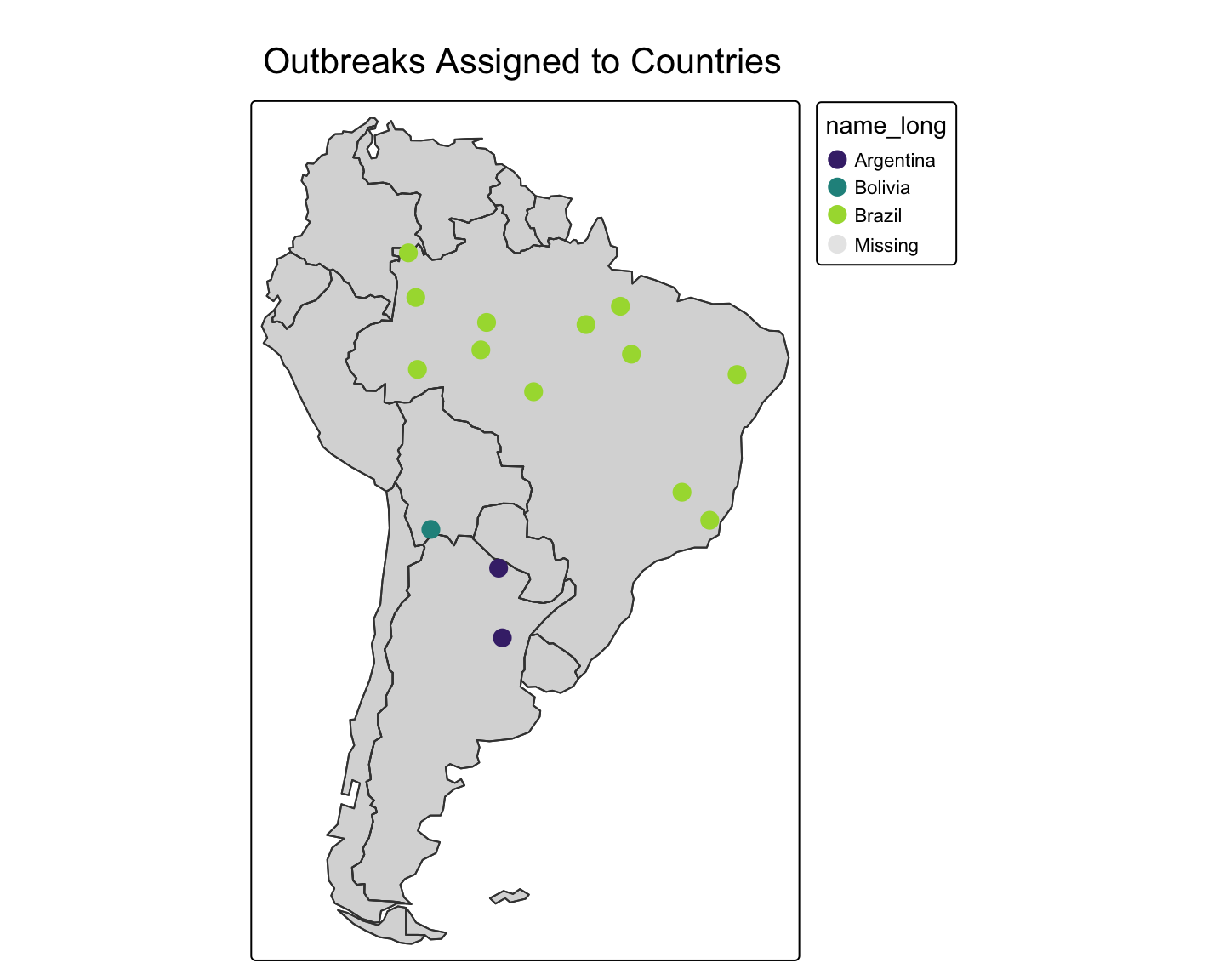

# Let's map this to see the result
tmap_mode("plot")
tm_shape(sa_countries) + tm_polygons() + tm_borders() +
  tm_shape(points_with_country_data) +
  tm_dots(col = "name_long", palette = "viridis", size=0.7, title="Country") +
  tm_layout(main.title = "Outbreaks Assigned to Countries")

Distance Calculations

Before we dive into buffering, it’s important to understand how to calculate distances correctly in spatial data. This is often done wrong or just carelessly even in peer-reviewed publications.

Why Distance Calculation Matters

When you look at a map on your phone or computer, you’re seeing locations represented by longitude and latitude coordinates. These coordinates work great for showing where things are, but there’s a problem when we try to measure distances between them.

The Earth is Round, Maps are Flat

Earth is a three-dimensional sphere, but our maps and coordinate systems often treat it as if it were flat (I hope we can all agree on that otherwise check this out. Imagine trying to measure the distance between two cities by laying a ruler on a globe versus measuring on a flat map - you’d get different answers!

When we use longitude and latitude coordinates directly (called “unprojected” coordinates), we’re essentially pretending the Earth is flat. This creates errors in our distance calculations that can be significant, especially over longer distances.

Understanding Coordinate Reference Systems (CRS)

A Coordinate Reference System (CRS) is like a mathematical recipe that tells us how to translate locations on the curved Earth onto a flat map or computer screen. There are two main types:

Geographic CRS (like WGS84): Uses longitude and latitude degrees
- Good for: Showing locations globally
- Problem for distances: Treats Earth as flat when calculating
Projected CRS (like UTM): Converts the curved Earth to a flat surface for a specific region
- Good for: Accurate distance and area calculations
- Trade-off: Only accurate for the specific region it’s designed for

Practical Example: Measuring Distance in Uganda

Let’s see this in action by measuring the distance between Kampala and Pakwach in Uganda:

Show/Hide Code

# Load required libraries
library(sf)
library(geosphere)
library(units)

# Create points using longitude/latitude coordinates (WGS84)
kampala <- st_point(c(32.5825, 0.3476)) %>%
  st_sfc(crs = 4326) # 4326 is the code for WGS84

pakwach <- st_point(c(31.4944, 2.4613)) %>%
  st_sfc(crs = 4326)

Method 1: The Wrong Way (Unprojected)

Show/Hide Code

# Calculate distance directly with longitude/latitude - DON'T DO THIS!
unprojected_distance <- st_distance(kampala, pakwach)
unprojected_distance

Units: [m]
         [,1]
[1,] 264327.5

This gives us 264.3 km, but this is incorrect because it treats the Earth as flat.

Method 2: The Right Way (Projected)

Show/Hide Code

# Project both points to UTM Zone 36N (appropriate for Uganda)
kampala_projected <- st_transform(kampala, 32636) # 32636 is UTM Zone 36N
pakwach_projected <- st_transform(pakwach, 32636)

# Now calculate distance - this is correct!
projected_distance <- st_distance(kampala_projected, pakwach_projected)
projected_distance

Units: [m]
         [,1]
[1,] 263161.1

This gives us 263.2 km, which is the accurate distance.

Method 3: Alternative Approach with Geosphere

Show/Hide Code

# Extract coordinates for geosphere package
kampala_coords <- st_coordinates(kampala)
pakwach_coords <- st_coordinates(pakwach)

# Calculate distance using Vincenty formula (accounts for Earth's curvature)
vincenty_distance <- distVincentyEllipsoid(kampala_coords, pakwach_coords)
vincenty_distance_km <- vincenty_distance / 1000

paste("Vincenty distance:", round(vincenty_distance_km, 2), "km")

[1] "Vincenty distance: 263.23 km"

Comparing All Methods

Show/Hide Code

# Convert units for easier comparison
unprojected_km <- as.numeric(set_units(unprojected_distance, km))
projected_km <- as.numeric(set_units(projected_distance, km))

comparison <- data.frame(
  Method = c("Unprojected (WRONG)",
             "Projected UTM (CORRECT)",
             "Vincenty Ellipsoid (CORRECT)"),
  Distance_km = c(unprojected_km,
                  projected_km,
                  vincenty_distance_km),
  Difference_from_correct = c(unprojected_km - projected_km,
                             0,
                             vincenty_distance_km - projected_km)
)

comparison %>% dplyr::select(Method, Distance_km)

                        Method Distance_km
1          Unprojected (WRONG)    264.3275
2      Projected UTM (CORRECT)    263.1611
3 Vincenty Ellipsoid (CORRECT)    263.2252

Key Takeaways

Always project your data before calculating distances for accuracy
Use the correct regional CRS for your research
The difference might seem small in our example (~1 km), but errors compound over longer distances and in complex analyses
Consistency matters - using the same CRS across all your analyses ensures comparable results

Buffering

Buffering creates a new polygon around a spatial feature at a specified distance. This is useful for modeling zones of influence or potential exposure.

Important: Buffering requires a projected CRS for distances to be meaningful (e.g., in meters).

Worked Example: Buffering Health Facilities

Let’s use the zion dataset from spData. We can pretend the visitor centers are health clinics.

Show/Hide Code

# Load Zion National Park data
zion_gpkg_path <- system.file("vector/zion_points.gpkg", package = "spDataLarge")
zion_boundary_gpkg_path <- system.file("vector/zion.gpkg", package = "spDataLarge")

zion_boundary <- sf::read_sf(zion_boundary_gpkg_path)
zion_points <- sf::read_sf(zion_gpkg_path)
st_crs(zion_points)

Coordinate Reference System:
  User input: WGS 84
  wkt:
GEOGCRS["WGS 84",
    ENSEMBLE["World Geodetic System 1984 ensemble",
        MEMBER["World Geodetic System 1984 (Transit)"],
        MEMBER["World Geodetic System 1984 (G730)"],
        MEMBER["World Geodetic System 1984 (G873)"],
        MEMBER["World Geodetic System 1984 (G1150)"],
        MEMBER["World Geodetic System 1984 (G1674)"],
        MEMBER["World Geodetic System 1984 (G1762)"],
        MEMBER["World Geodetic System 1984 (G2139)"],
        MEMBER["World Geodetic System 1984 (G2296)"],
        ELLIPSOID["WGS 84",6378137,298.257223563,
            LENGTHUNIT["metre",1]],
        ENSEMBLEACCURACY[2.0]],
    PRIMEM["Greenwich",0,
        ANGLEUNIT["degree",0.0174532925199433]],
    CS[ellipsoidal,2],
        AXIS["geodetic latitude (Lat)",north,
            ORDER[1],
            ANGLEUNIT["degree",0.0174532925199433]],
        AXIS["geodetic longitude (Lon)",east,
            ORDER[2],
            ANGLEUNIT["degree",0.0174532925199433]],
    USAGE[
        SCOPE["Horizontal component of 3D system."],
        AREA["World."],
        BBOX[-90,-180,90,180]],
    ID["EPSG",4326]]

Show/Hide Code

# First, check the current CRS of your data
st_crs(zion_points)

Coordinate Reference System:
  User input: WGS 84
  wkt:
GEOGCRS["WGS 84",
    ENSEMBLE["World Geodetic System 1984 ensemble",
        MEMBER["World Geodetic System 1984 (Transit)"],
        MEMBER["World Geodetic System 1984 (G730)"],
        MEMBER["World Geodetic System 1984 (G873)"],
        MEMBER["World Geodetic System 1984 (G1150)"],
        MEMBER["World Geodetic System 1984 (G1674)"],
        MEMBER["World Geodetic System 1984 (G1762)"],
        MEMBER["World Geodetic System 1984 (G2139)"],
        MEMBER["World Geodetic System 1984 (G2296)"],
        ELLIPSOID["WGS 84",6378137,298.257223563,
            LENGTHUNIT["metre",1]],
        ENSEMBLEACCURACY[2.0]],
    PRIMEM["Greenwich",0,
        ANGLEUNIT["degree",0.0174532925199433]],
    CS[ellipsoidal,2],
        AXIS["geodetic latitude (Lat)",north,
            ORDER[1],
            ANGLEUNIT["degree",0.0174532925199433]],
        AXIS["geodetic longitude (Lon)",east,
            ORDER[2],
            ANGLEUNIT["degree",0.0174532925199433]],
    USAGE[
        SCOPE["Horizontal component of 3D system."],
        AREA["World."],
        BBOX[-90,-180,90,180]],
    ID["EPSG",4326]]

Show/Hide Code

# Project to an appropriate coordinate system for Utah
# UTM Zone 12N (EPSG:32612) is good for Utah/Zion area
zion_points_projected <- st_transform(zion_points, crs = 32612)
zion_boundary_projected <- st_transform(zion_boundary, crs = 32612)
st_crs(zion_boundary_projected)

Coordinate Reference System:
  User input: EPSG:32612
  wkt:
PROJCRS["WGS 84 / UTM zone 12N",
    BASEGEOGCRS["WGS 84",
        ENSEMBLE["World Geodetic System 1984 ensemble",
            MEMBER["World Geodetic System 1984 (Transit)"],
            MEMBER["World Geodetic System 1984 (G730)"],
            MEMBER["World Geodetic System 1984 (G873)"],
            MEMBER["World Geodetic System 1984 (G1150)"],
            MEMBER["World Geodetic System 1984 (G1674)"],
            MEMBER["World Geodetic System 1984 (G1762)"],
            MEMBER["World Geodetic System 1984 (G2139)"],
            MEMBER["World Geodetic System 1984 (G2296)"],
            ELLIPSOID["WGS 84",6378137,298.257223563,
                LENGTHUNIT["metre",1]],
            ENSEMBLEACCURACY[2.0]],
        PRIMEM["Greenwich",0,
            ANGLEUNIT["degree",0.0174532925199433]],
        ID["EPSG",4326]],
    CONVERSION["UTM zone 12N",
        METHOD["Transverse Mercator",
            ID["EPSG",9807]],
        PARAMETER["Latitude of natural origin",0,
            ANGLEUNIT["degree",0.0174532925199433],
            ID["EPSG",8801]],
        PARAMETER["Longitude of natural origin",-111,
            ANGLEUNIT["degree",0.0174532925199433],
            ID["EPSG",8802]],
        PARAMETER["Scale factor at natural origin",0.9996,
            SCALEUNIT["unity",1],
            ID["EPSG",8805]],
        PARAMETER["False easting",500000,
            LENGTHUNIT["metre",1],
            ID["EPSG",8806]],
        PARAMETER["False northing",0,
            LENGTHUNIT["metre",1],
            ID["EPSG",8807]]],
    CS[Cartesian,2],
        AXIS["(E)",east,
            ORDER[1],
            LENGTHUNIT["metre",1]],
        AXIS["(N)",north,
            ORDER[2],
            LENGTHUNIT["metre",1]],
    USAGE[
        SCOPE["Navigation and medium accuracy spatial referencing."],
        AREA["Between 114°W and 108°W, northern hemisphere between equator and 84°N, onshore and offshore. Canada - Alberta; Northwest Territories (NWT); Nunavut; Saskatchewan. Mexico. United States (USA)."],
        BBOX[0,-114,84,-108]],
    ID["EPSG",32612]]

Show/Hide Code

# Now create the 1.5km buffer using the projected data
visitor_center_buffers <- st_buffer(zion_points_projected, dist = 1500)

# Create the map with projected data
tm_shape(zion_boundary_projected) +
  tm_polygons(col="lightgreen", alpha=0.5) +
  tm_borders() +
tm_shape(zion_points_projected) +
  tm_dots(col="red", size=0.5) +
tm_shape(visitor_center_buffers) +
  tm_polygons(col="blue", alpha=0.4, border.col = "darkblue") +
tm_layout(main.title = "1.5km Buffers around Visitor Centers")

Show/Hide Code

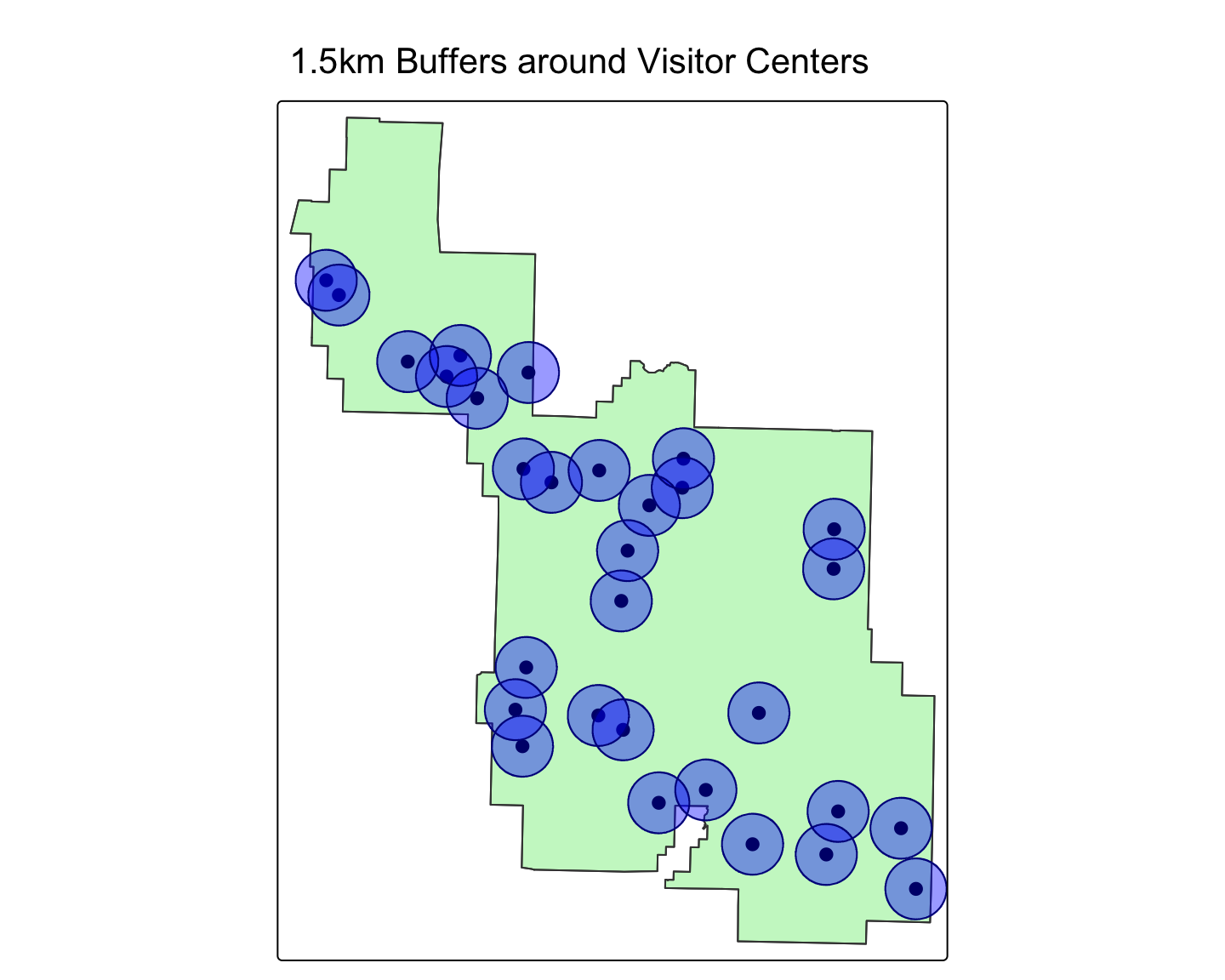

# Let's create a 1.5 kilometer (1500 meter) buffer around these points
visitor_center_buffers <- st_buffer(zion_points, dist = 1500)

# Let's map the park boundary, the points, and their buffers
tm_shape(zion_boundary) + tm_polygons(col="lightgreen", alpha=0.5) + tm_borders() +
  tm_shape(zion_points) + tm_dots(col="red", size=0.5) +
  tm_shape(visitor_center_buffers) + tm_polygons(col="blue", alpha=0.4, border.col = "darkblue") +
  tm_layout(main.title = "1.5km Buffers around Visitor Centers")

Geometric Operations

The sf package allows for powerful geometric operations. The two most common are st_intersection() (finding common area) and st_union() (dissolving boundaries).

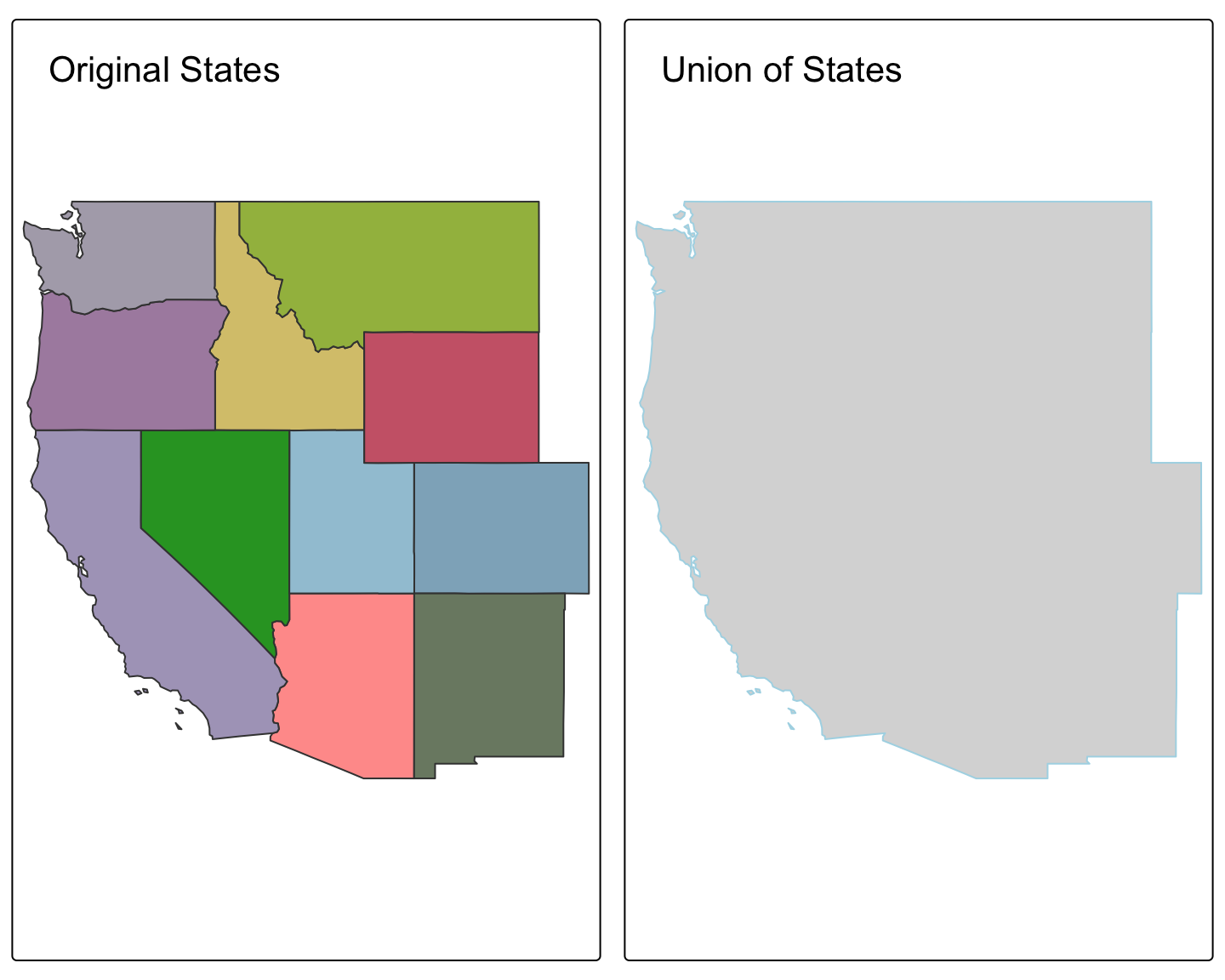

Worked Example (Union): Creating a Single Regional Polygon

Show/Hide Code

# Get the western states from Module 1
data("us_states")
western_states <- us_states %>% filter(REGION == "West")

# Dissolve all the internal boundaries into a single feature
west_region_boundary <- st_union(western_states)

# Plot the original states and the single dissolved boundary
plot1 <- tm_shape(western_states) + tm_polygons("NAME", legend.show = FALSE) + tm_layout(title="Original States")
plot2 <- tm_shape(west_region_boundary) + tm_polygons(col="lightblue") + tm_layout(title="Union of States")
tmap_arrange(plot1, plot2)

Exercise 1: Advanced Vector Operations

Let’s practice by finding major cities in Brazil and analyzing their proximity.

Load the world.cities dataset from spData. Spatially join it with the world dataset to get the country name for each city. Then, filter to create a new sf object called brazil_cities that contains only cities in Brazil.

Show/Hide Code

# Your code here

Show/Hide Code

# Re-create all necessary objects from previous tasks
data("world.cities", package = "maps")
data("world")
world_cities_sf <- st_as_sf(world.cities, coords = c("long", "lat"), crs = 4326)
cities_in_countries <- st_join(world_cities_sf, world)

brazil_cities <- cities_in_countries %>% filter(name_long == "Brazil")

head(brazil_cities)

Simple feature collection with 6 features and 14 fields
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: -48.89 ymin: -7.95 xmax: -34.88 ymax: -1.72
Geodetic CRS:  WGS 84
          name country.etc pop.x capital iso_a2 name_long     continent
1   Abaetetuba      Brazil 79660       0     BR    Brazil South America
2 Abreu e Lima      Brazil 82765       0     BR    Brazil South America
3   Acailandia      Brazil 93252       0     BR    Brazil South America
4       Acarau      Brazil 29169       0     BR    Brazil South America
5     Acopiara      Brazil 24942       0     BR    Brazil South America
6          Acu      Brazil 36421       0     BR    Brazil South America
  region_un     subregion              type area_km2     pop.y lifeExp
1  Americas South America Sovereign country  8508557 204213133  75.042
2  Americas South America Sovereign country  8508557 204213133  75.042
3  Americas South America Sovereign country  8508557 204213133  75.042
4  Americas South America Sovereign country  8508557 204213133  75.042
5  Americas South America Sovereign country  8508557 204213133  75.042
6  Americas South America Sovereign country  8508557 204213133  75.042
  gdpPercap             geometry
1  15374.26 POINT (-48.89 -1.72)
2  15374.26 POINT (-34.88 -7.95)
3  15374.26 POINT (-47.54 -5.06)
4  15374.26 POINT (-40.12 -2.89)
5  15374.26  POINT (-39.46 -6.1)
6  15374.26 POINT (-36.91 -5.58)

The CRS of brazil_cities is WGS84 (geographic). To create meaningful buffers, transform it to a projected CRS suitable for Brazil. A good one is SIRGAS 2000 / Brazil Polyconic (EPSG:5880). Then, create a 50km (50,000 meter) buffer around each city.

Show/Hide Code

# Your code here

Show/Hide Code

# Re-create all necessary objects from previous tasks
data("world.cities", package = "maps")
data("world")
world_cities_sf <- st_as_sf(world.cities, coords = c("long", "lat"), crs = 4326)
cities_in_countries <- st_join(world_cities_sf, world)
brazil_cities <- cities_in_countries %>% filter(name_long == "Brazil")


# Task
brazil_cities_proj <- st_transform(brazil_cities, "EPSG:5880")
city_buffers_proj <- st_buffer(brazil_cities_proj, dist = 50000)

head(city_buffers_proj)

Simple feature collection with 6 features and 14 fields
Geometry type: POLYGON
Dimension:     XY
Bounding box:  xmin: 5518587 ymin: 9022237 xmax: 7157359 ymax: 9859051
Projected CRS: SIRGAS 2000 / Brazil Polyconic
          name country.etc pop.x capital iso_a2 name_long     continent
1   Abaetetuba      Brazil 79660       0     BR    Brazil South America
2 Abreu e Lima      Brazil 82765       0     BR    Brazil South America
3   Acailandia      Brazil 93252       0     BR    Brazil South America
4       Acarau      Brazil 29169       0     BR    Brazil South America
5     Acopiara      Brazil 24942       0     BR    Brazil South America
6          Acu      Brazil 36421       0     BR    Brazil South America
  region_un     subregion              type area_km2     pop.y lifeExp
1  Americas South America Sovereign country  8508557 204213133  75.042
2  Americas South America Sovereign country  8508557 204213133  75.042
3  Americas South America Sovereign country  8508557 204213133  75.042
4  Americas South America Sovereign country  8508557 204213133  75.042
5  Americas South America Sovereign country  8508557 204213133  75.042
6  Americas South America Sovereign country  8508557 204213133  75.042
  gdpPercap                       geometry
1  15374.26 POLYGON ((5618587 9809051, ...
2  15374.26 POLYGON ((7157359 9072237, ...
3  15374.26 POLYGON ((5766328 9436918, ...
4  15374.26 POLYGON ((6593124 9671014, ...
5  15374.26 POLYGON ((6659287 9303771, ...
6  15374.26 POLYGON ((6943230 9355519, ...

The buffers might extend beyond Brazil’s land border. Get the polygon for Brazil from the world dataset, transform it to the same projected CRS (EPSG:5880), and then find the intersection of your buffers and the country’s polygon.

Show/Hide Code

# Your code here

Show/Hide Code

# Re-create all necessary objects from previous tasks
data("world.cities")
data("world")
world_cities_sf <- st_as_sf(world.cities, coords = c("long", "lat"), crs = 4326)
cities_in_countries <- st_join(world_cities_sf, world)
brazil_cities <- cities_in_countries %>% filter(name_long == "Brazil")
brazil_cities_proj <- st_transform(brazil_cities, "EPSG:5880")
city_buffers_proj <- st_buffer(brazil_cities_proj, dist = 50000)

# Task
brazil_poly_proj <- world %>%
  filter(name_long == "Brazil") %>%
  st_transform("EPSG:5880")
city_buffers_intersect <- st_intersection(city_buffers_proj, brazil_poly_proj)
head(city_buffers_intersect)

Simple feature collection with 6 features and 24 fields
Geometry type: POLYGON
Dimension:     XY
Bounding box:  xmin: 5518587 ymin: 9023997 xmax: 7120924 ymax: 9859051
Projected CRS: SIRGAS 2000 / Brazil Polyconic
          name country.etc pop.x capital iso_a2 name_long     continent
1   Abaetetuba      Brazil 79660       0     BR    Brazil South America
2 Abreu e Lima      Brazil 82765       0     BR    Brazil South America
3   Acailandia      Brazil 93252       0     BR    Brazil South America
4       Acarau      Brazil 29169       0     BR    Brazil South America
5     Acopiara      Brazil 24942       0     BR    Brazil South America
6          Acu      Brazil 36421       0     BR    Brazil South America
  region_un     subregion              type area_km2     pop.y lifeExp
1  Americas South America Sovereign country  8508557 204213133  75.042
2  Americas South America Sovereign country  8508557 204213133  75.042
3  Americas South America Sovereign country  8508557 204213133  75.042
4  Americas South America Sovereign country  8508557 204213133  75.042
5  Americas South America Sovereign country  8508557 204213133  75.042
6  Americas South America Sovereign country  8508557 204213133  75.042
  gdpPercap iso_a2.1 name_long.1   continent.1 region_un.1   subregion.1
1  15374.26       BR      Brazil South America    Americas South America
2  15374.26       BR      Brazil South America    Americas South America
3  15374.26       BR      Brazil South America    Americas South America
4  15374.26       BR      Brazil South America    Americas South America
5  15374.26       BR      Brazil South America    Americas South America
6  15374.26       BR      Brazil South America    Americas South America
             type.1 area_km2.1       pop lifeExp.1 gdpPercap.1
1 Sovereign country    8508557 204213133    75.042    15374.26
2 Sovereign country    8508557 204213133    75.042    15374.26
3 Sovereign country    8508557 204213133    75.042    15374.26
4 Sovereign country    8508557 204213133    75.042    15374.26
5 Sovereign country    8508557 204213133    75.042    15374.26
6 Sovereign country    8508557 204213133    75.042    15374.26
                        geometry
1 POLYGON ((5618519 9806434, ...
2 POLYGON ((7091908 9024684, ...
3 POLYGON ((5766260 9434301, ...
4 POLYGON ((6589803 9653095, ...
5 POLYGON ((6659218 9301155, ...
6 POLYGON ((6943161 9352903, ...

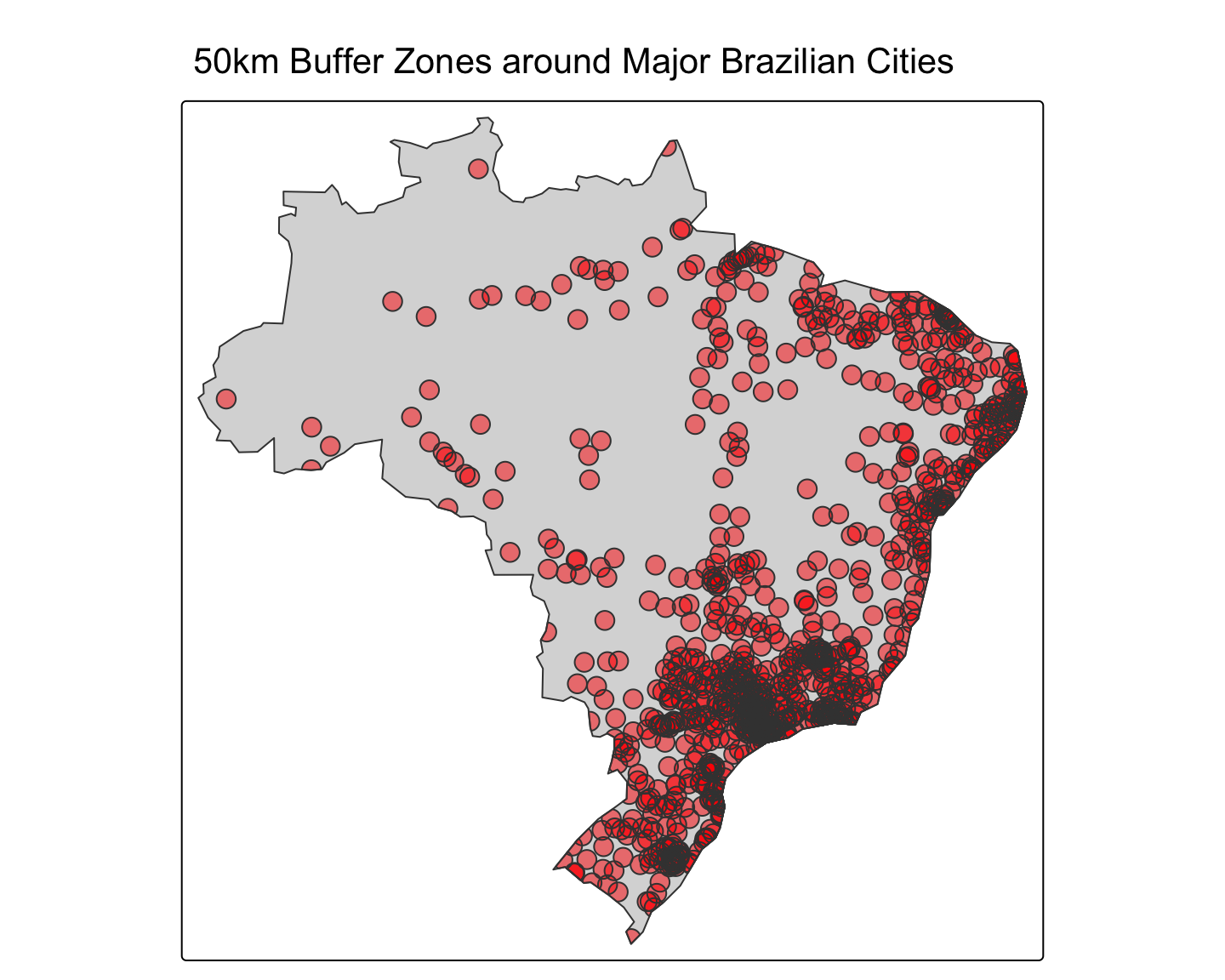

Create a map showing the final intersected buffers on top of the Brazil polygon.

Show/Hide Code

# Your code here

Show/Hide Code

# Re-create all necessary objects
data("world.cities")
data("world")
world_cities_sf <- st_as_sf(world.cities, coords = c("long", "lat"), crs = 4326)
cities_in_countries <- st_join(world_cities_sf, world)
brazil_cities <- cities_in_countries %>% filter(name_long == "Brazil")
brazil_cities_proj <- st_transform(brazil_cities, "EPSG:5880")
city_buffers_proj <- st_buffer(brazil_cities_proj, dist = 50000)
brazil_poly_proj <- world %>%
  filter(name_long == "Brazil") %>%
  st_transform("EPSG:5880")
city_buffers_intersect <- st_intersection(city_buffers_proj, brazil_poly_proj)

# Create the map
tm_shape(brazil_poly_proj) + tm_polygons() +
  tm_shape(city_buffers_intersect) + tm_polygons(col="red", alpha=0.5) +
  tm_layout(main.title = "50km Buffer Zones around Major Brazilian Cities")

2.3 Advanced Raster Data Techniques with `terra`

Raster Calculations (Map Algebra)

Map algebra is the process of performing calculations on one or more raster layers. With terra, this is as simple as using standard R arithmetic operators.

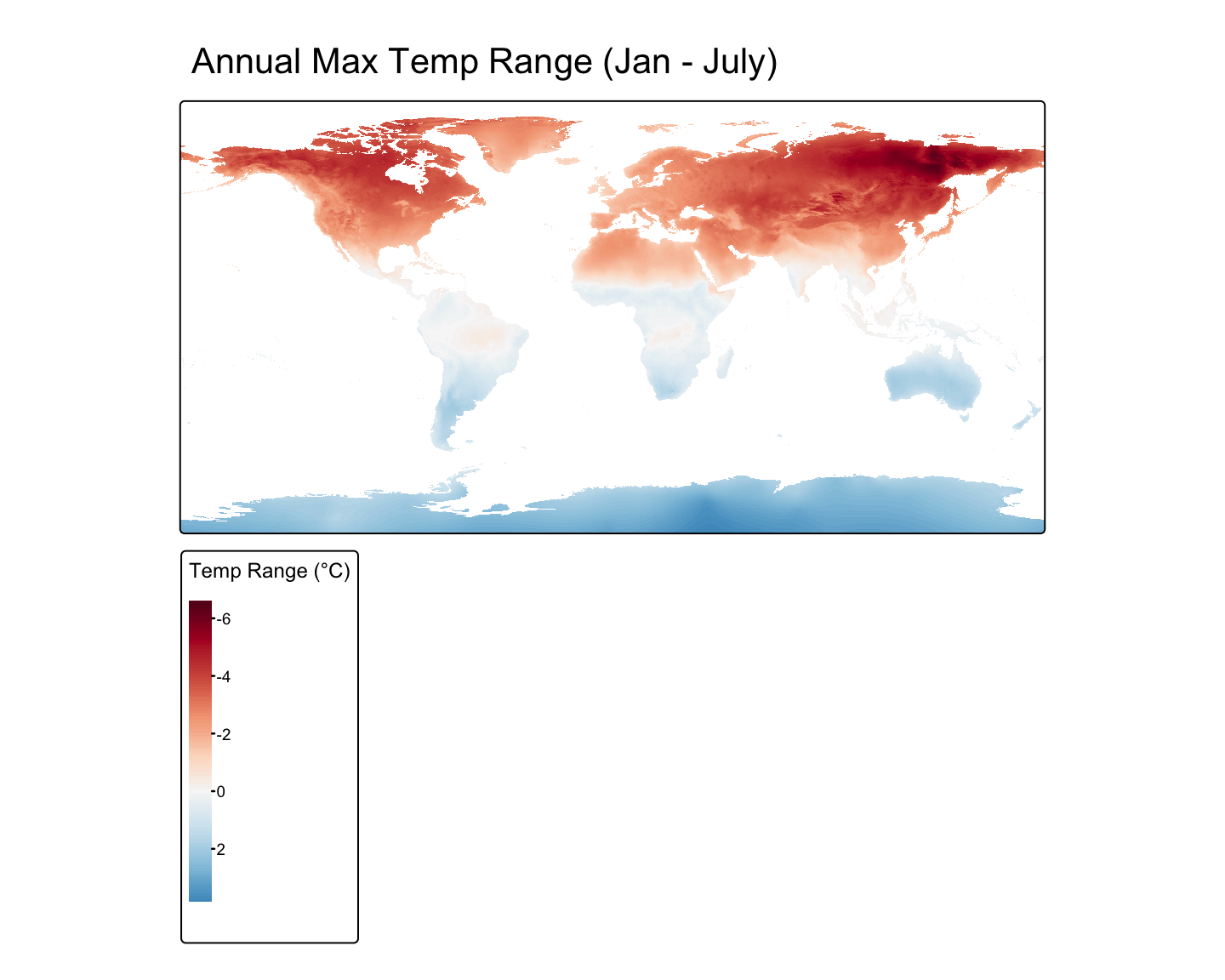

Worked Example: Calculating Temperature Range

Show/Hide Code

# Load the data and calculate the annual mean in Celsius
temp_path <- tempdir()
global_tmax <- geodata::worldclim_global(var = "tmax", res = 10, path = temp_path) / 10

# Access individual layers (months) using [[...]]
jan_tmax <- global_tmax[[1]]
jul_tmax <- global_tmax[[7]]

# Perform the calculation
annual_range <- jan_tmax - jul_tmax

# Rename the layer for the plot legend
names(annual_range) <- "Temp Range (°C)"

# Plot the result
tm_shape(annual_range) + tm_raster(palette="RdBu", style="cont") +
  tm_layout(main.title = "Annual Max Temp Range (Jan - July)")

Zonal Statistics

This is arguably one of the most important techniques for environmental epidemiology. It involves summarizing raster values within zones defined by vector polygons (e.g., calculating mean NDVI per administrative district).

Worked Example: Mean Elevation per Country in South America

Show/Hide Code

# 1. Get the polygon data (zones)
sa_countries <- world %>%
  filter(continent == "South America")

# 2. Get the raster data (values)
# We will download a coarse global elevation raster
temp_path <- tempdir() # Ensure temp_path is defined
elevation <- geodata::worldclim_global(var = "elev", res = 10, path = temp_path)

# 3. Perform the zonal extraction
mean_elev <- terra::extract(elevation, sa_countries, fun = "mean", ID = FALSE)

# 4. Combine the results with the polygon data
sa_countries_with_elev <- cbind(sa_countries, mean_elev)

# 5. Map the result

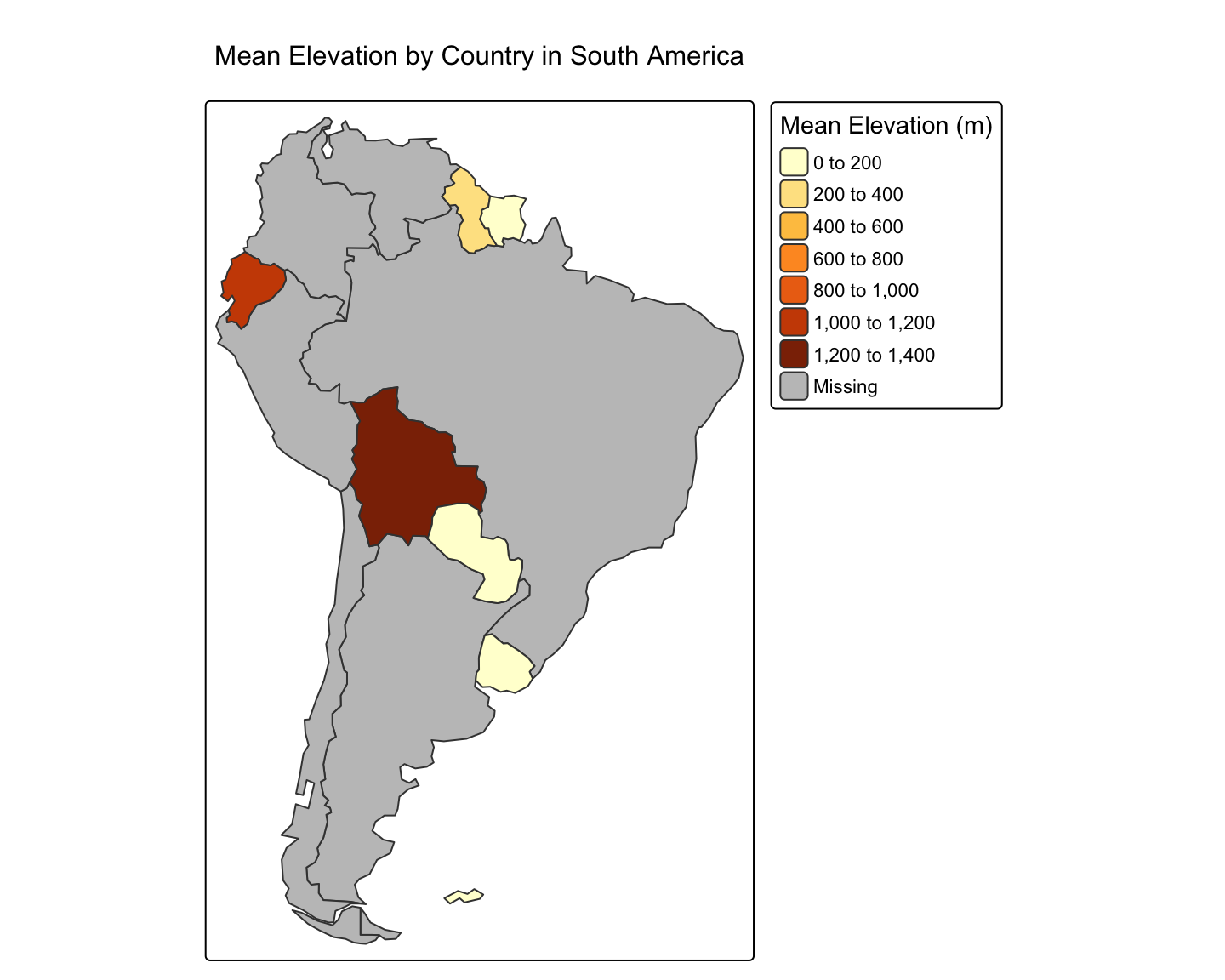

tm_shape(sa_countries_with_elev) +
  tm_polygons(col = "wc2.1_10m_elev",
              title = "Mean Elevation (m)",
              palette = "YlOrBr") +
  tm_layout(main.title = "Mean Elevation by Country in South America")

2.4 3D Visualization with `rayshader`

While tmap and ggplot2 are excellent for 2D maps, the rayshader package allows us to create stunning 2D and 3D data visualizations, adding a new dimension to our analysis. It uses elevation data in a standard R matrix and a combination of raytracing and hillshading algorithms to generate beautiful maps.

Worked Example: Creating a 3D Map of Monterey Bay

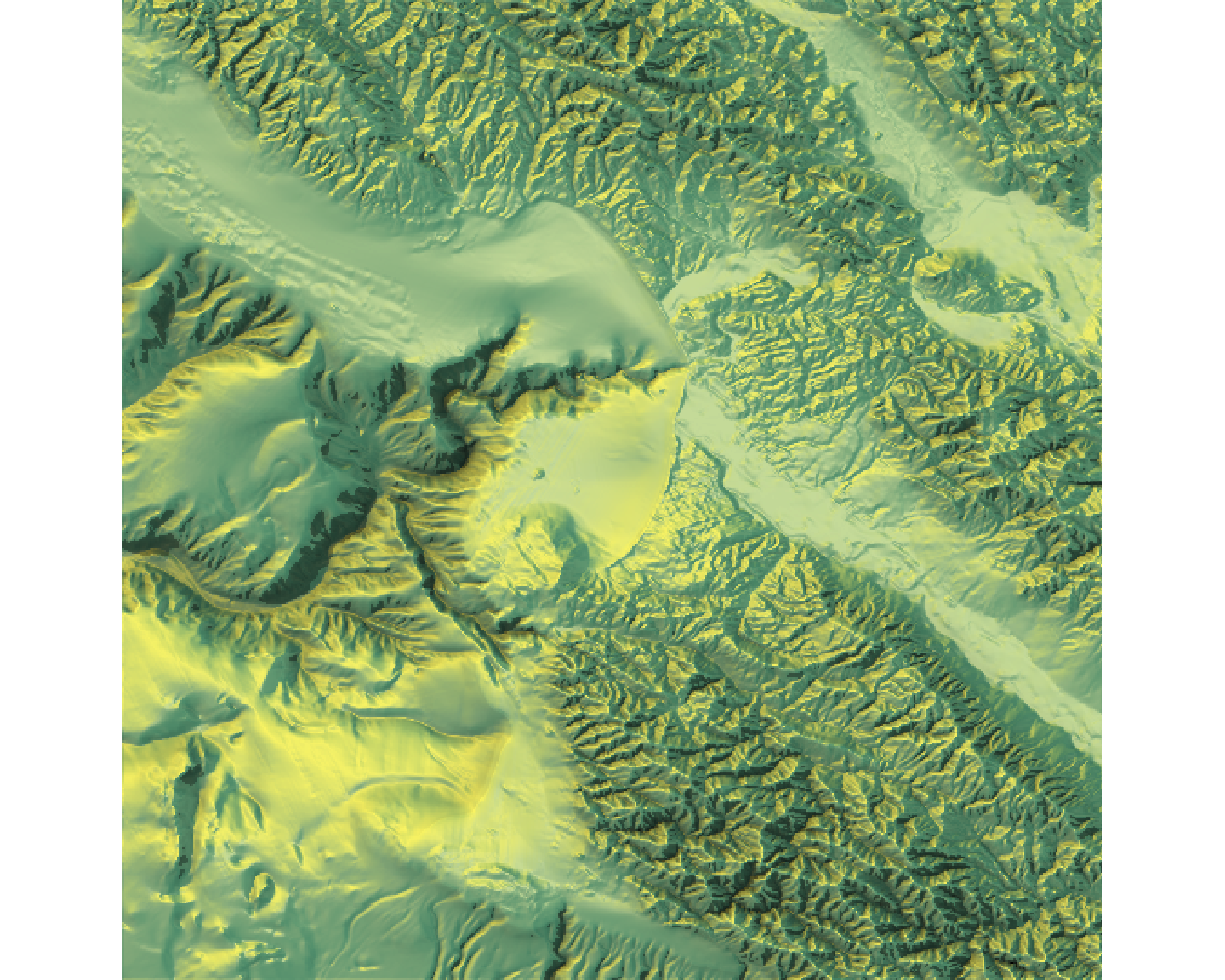

The core rayshader workflow involves taking an elevation matrix and layering different shade components (color, shadow, ambient light) before plotting it in 2D or 3D. We will use the montereybay dataset, which is built into rayshader.

Show/Hide Code

# 1. Get Data: The `montereybay` dataset is already a matrix.
elmat <- montereybay

# 2. Create a 2D map by layering shades
# Start with a texture layer based on elevation
map_base <- elmat %>%
  sphere_shade(texture = "imhof1")

# Add lambertian and ambient shadow layers
map_with_shadows <- map_base %>%
  add_shadow(ray_shade(elmat, zscale = 50, lambert = FALSE), 0.5) %>%
  add_shadow(ambient_shade(elmat, zscale = 50), 0)

# Plot the final 2D map
plot_map(map_with_shadows)

# 3. Create a 3D Map with a water layer
# In plot_3d, we can add water directly.
# The waterdepth is 0, since that's sea level in this dataset.

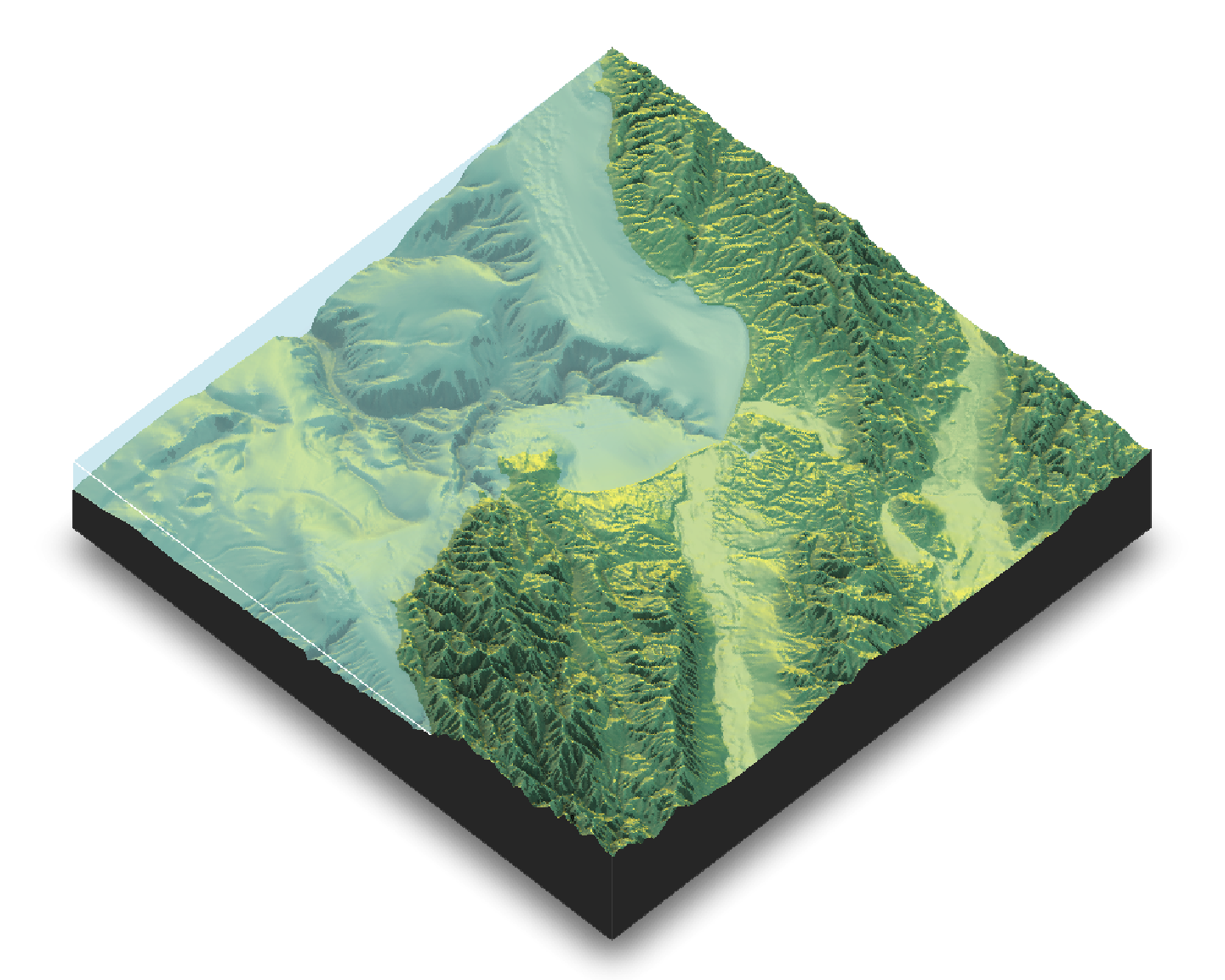

map_with_shadows %>%
  plot_3d(elmat, zscale = 50, fov = 0, theta = 45, phi = 50,
          windowsize = c(1000, 800), zoom = 0.75,
          water = TRUE, waterdepth = 0, wateralpha = 0.5, watercolor = "lightblue",
          waterlinecolor = "white", waterlinealpha = 0.5)

# Use render_snapshot() to capture the current 3D view
render_snapshot()

Exercise 2: 3D Visualization with `rayshader`

Let’s apply these 3D visualization skills to the elevation data for South America we used in the zonal statistics example.

Crop the global elevation raster (elevation) to the extent of South America (sa_countries). Then, convert the resulting SpatRaster object into a matrix using raster_to_matrix().

Show/Hide Code

# Your code here

Show/Hide Code

# Re-create necessary objects
data("world")
sa_countries <- world %>% filter(continent == "South America")
temp_path <- tempdir()
elevation <- geodata::worldclim_global(var = "elev", res = 10, path = temp_path)

# Task
sa_elevation_raster <- crop(elevation, sa_countries)
sa_elevation_matrix <- raster_to_matrix(sa_elevation_raster)

Using the South America elevation matrix, create a 2D map. 1. Start with sphere_shade(). Try the imhof4 texture. 2. Add a water layer using add_water() and detect_water(). 3. Add a shadow layer using ray_shade(). 4. Plot the result with plot_map().

Show/Hide Code

# Your code here

Show/Hide Code

# Re-create matrix from previous task
data("world")
sa_countries <- world %>% filter(continent == "South America")
temp_path <- tempdir()
elevation <- geodata::worldclim_global(var = "elev", res = 10, path = temp_path)
sa_elevation_raster <- crop(elevation, sa_countries)
sa_elevation_matrix <- raster_to_matrix(sa_elevation_raster)

# Task

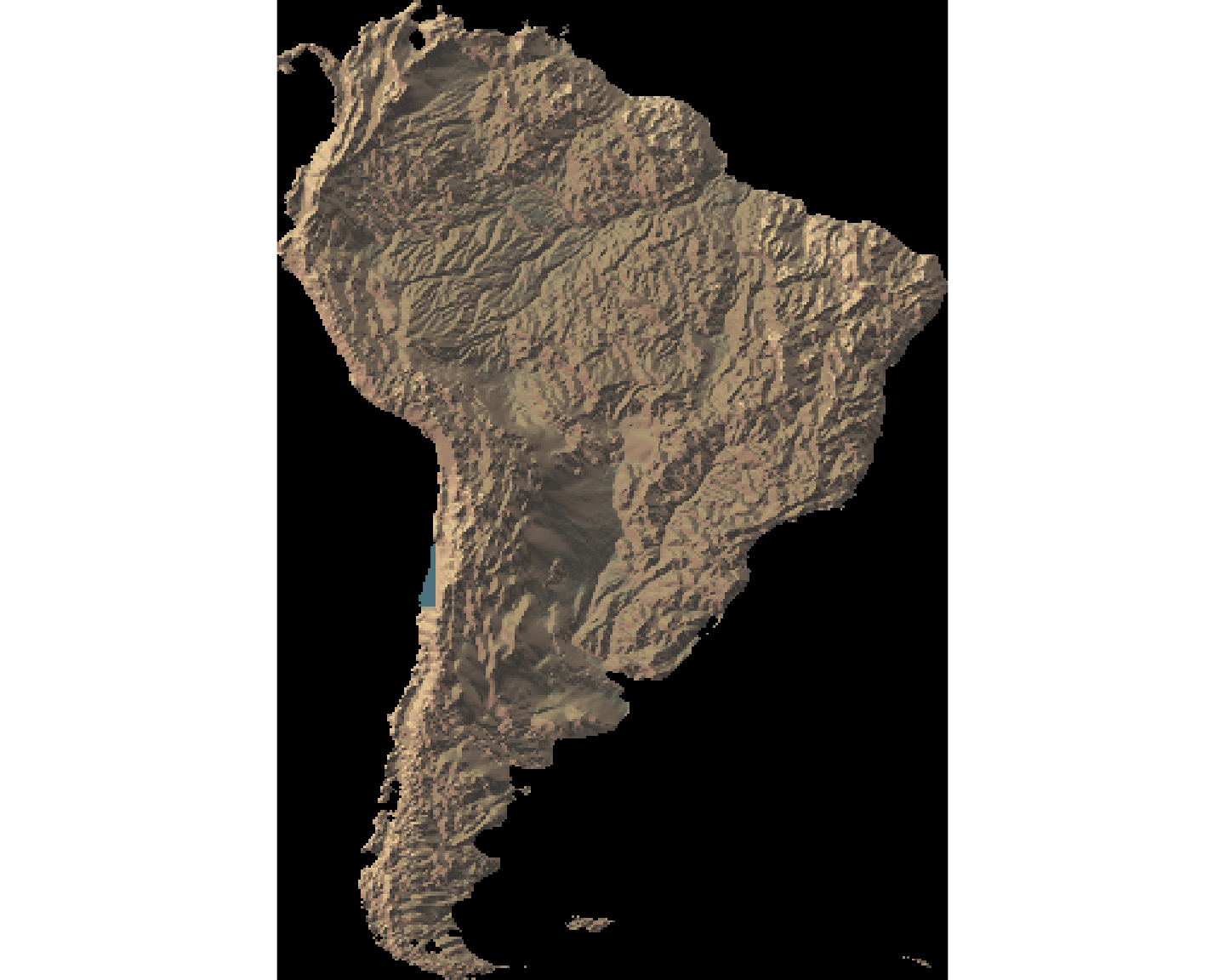

sa_elevation_matrix %>%
  sphere_shade(texture = "imhof4") %>%
  add_water(detect_water(sa_elevation_matrix), color = "imhof4") %>%
  add_shadow(ray_shade(sa_elevation_matrix, zscale = 3), 0.5) %>%
  plot_map()

Take the 2D map you just created and render it in 3D using plot_3d(). Experiment with the theta and phi camera arguments to get a nice view of the Andes mountains. Use render_snapshot() to save the view.

Show/Hide Code

# Your code here

Show/Hide Code

# Re-create objects from previous task
data("world")
sa_countries <- world %>% filter(continent == "South America")
temp_path <- tempdir()
elevation <- geodata::worldclim_global(var = "elev", res = 10, path = temp_path)
sa_elevation_raster <- crop(elevation, sa_countries)
# Keep the original matrix with NAs for water detection
sa_elevation_matrix_raw <- raster_to_matrix(sa_elevation_raster)

sa_elevation_matrix_filled <- sa_elevation_matrix_raw
min_elev <- min(sa_elevation_matrix_filled, na.rm = TRUE)
sa_elevation_matrix_filled[is.na(sa_elevation_matrix_filled)] <- min_elev

# Create the map object using the 'filled' matrix for shading
# but the 'raw' matrix for detecting water.
sa_map <- sa_elevation_matrix_filled %>%
  sphere_shade(texture = "imhof4") %>%
  add_water(detect_water(sa_elevation_matrix_raw), color = "imhof4") %>%
  add_shadow(ray_shade(sa_elevation_matrix_filled, zscale = 3), 0.5)

# Task: Plot in 3D using the 'filled' matrix

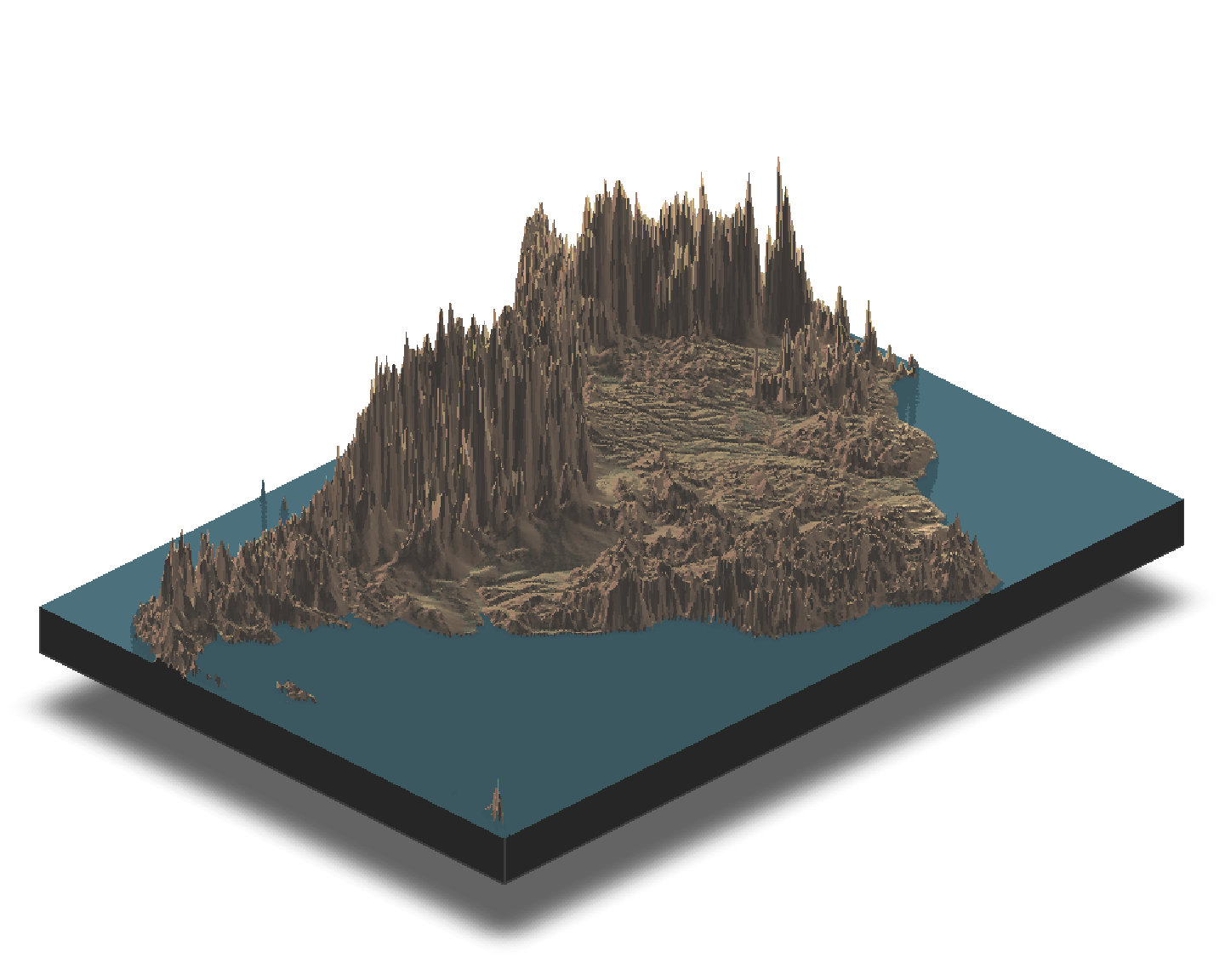

sa_map %>%
  plot_3d(sa_elevation_matrix_filled, zscale = 50, fov = 0, theta = 45, phi = 30,
          windowsize = c(1000, 800), zoom = 0.7)

render_snapshot()

Module 2 Finish Line

In this module, we moved from basic data handling to the fundamental analytical operations that underpin geospatial analysis. You learned how to integrate different datasets using spatial joins, model areas of influence with buffers, and perform powerful geometric operations and raster calculations.

Most importantly, you learned how to bridge the vector-raster divide using zonal statistics, a technique that is absolutely critical for combining environmental data with administrative or health data. Finally, you learned how to take your analysis into the third dimension with the rayshader package, creating compelling 3D visualizations from elevation data.

With these skills, you are now equipped to perform complex data preparation tasks. In the next module, we will focus specifically on acquiring and processing remote sensing data, such as NDVI and LST.

2.1 Setup: Loading Packages and Installation

2.2 Advanced Vector Data Techniques with sf

Spatial Joins

Distance Calculations

Why Distance Calculation Matters

The Earth is Round, Maps are Flat

Understanding Coordinate Reference Systems (CRS)

Practical Example: Measuring Distance in Uganda

Method 1: The Wrong Way (Unprojected)

Method 2: The Right Way (Projected)

Method 3: Alternative Approach with Geosphere

Comparing All Methods

Key Takeaways

Buffering

Geometric Operations

Exercise 1: Advanced Vector Operations

2.3 Advanced Raster Data Techniques with terra

Raster Calculations (Map Algebra)

Zonal Statistics

2.4 3D Visualization with rayshader

Worked Example: Creating a 3D Map of Monterey Bay

Exercise 2: 3D Visualization with rayshader

Module 2 Finish Line

2.2 Advanced Vector Data Techniques with `sf`

2.3 Advanced Raster Data Techniques with `terra`

2.4 3D Visualization with `rayshader`

Exercise 2: 3D Visualization with `rayshader`
